CARAVAN MOBILE

Selfsat Caravan Mobile

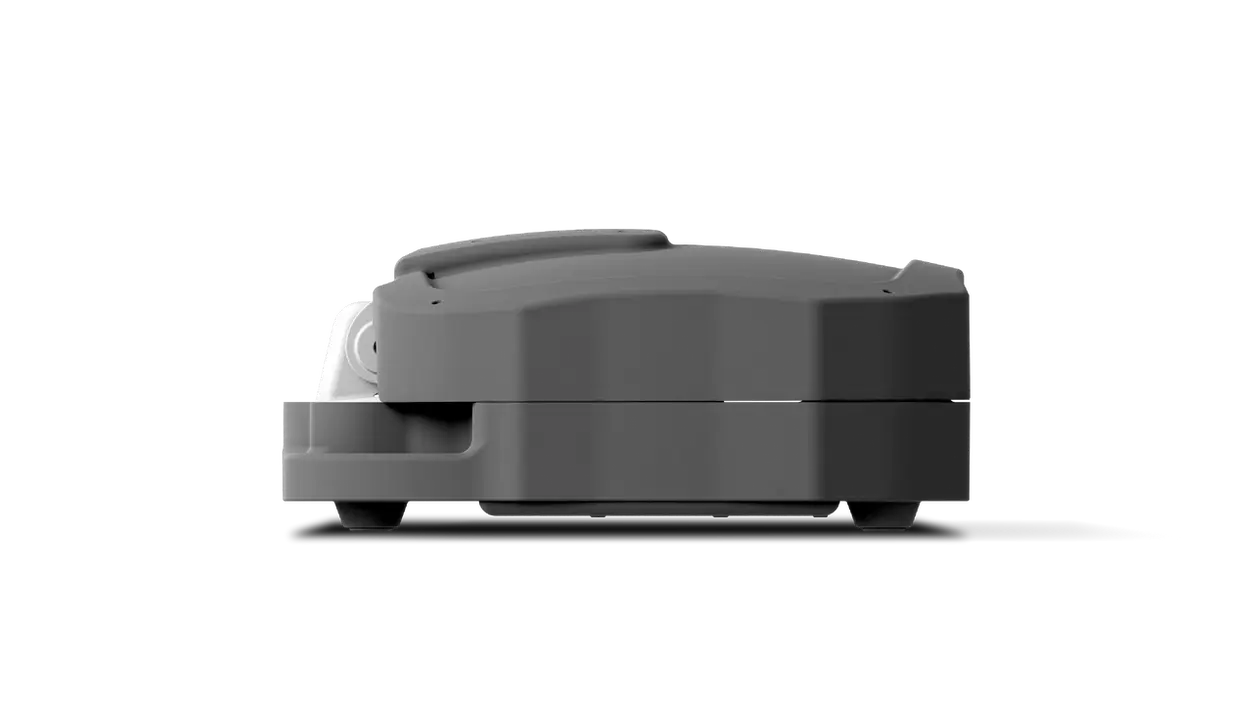

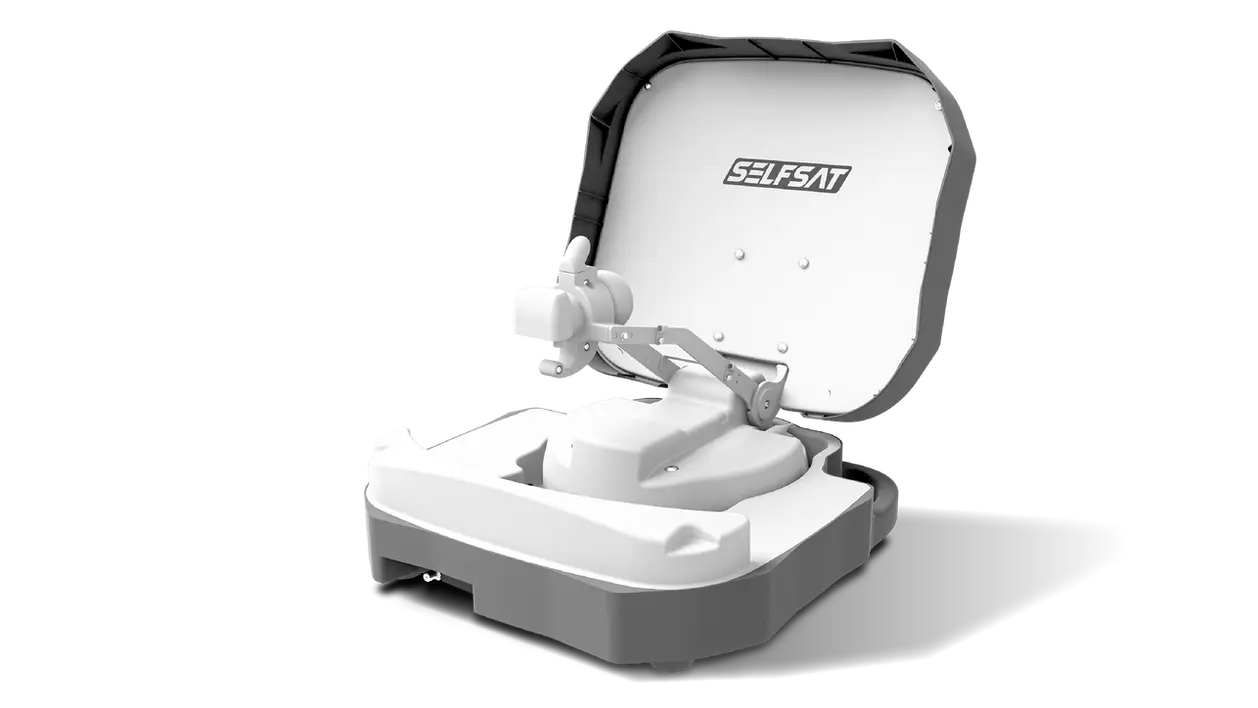

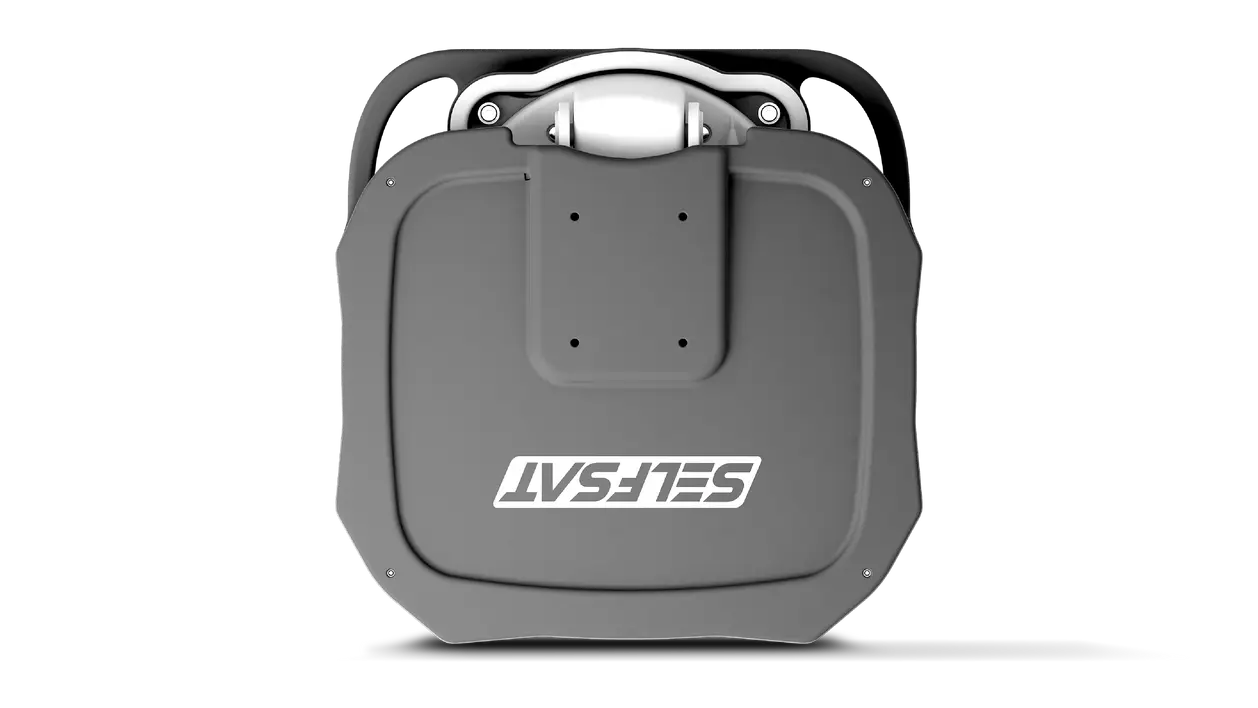

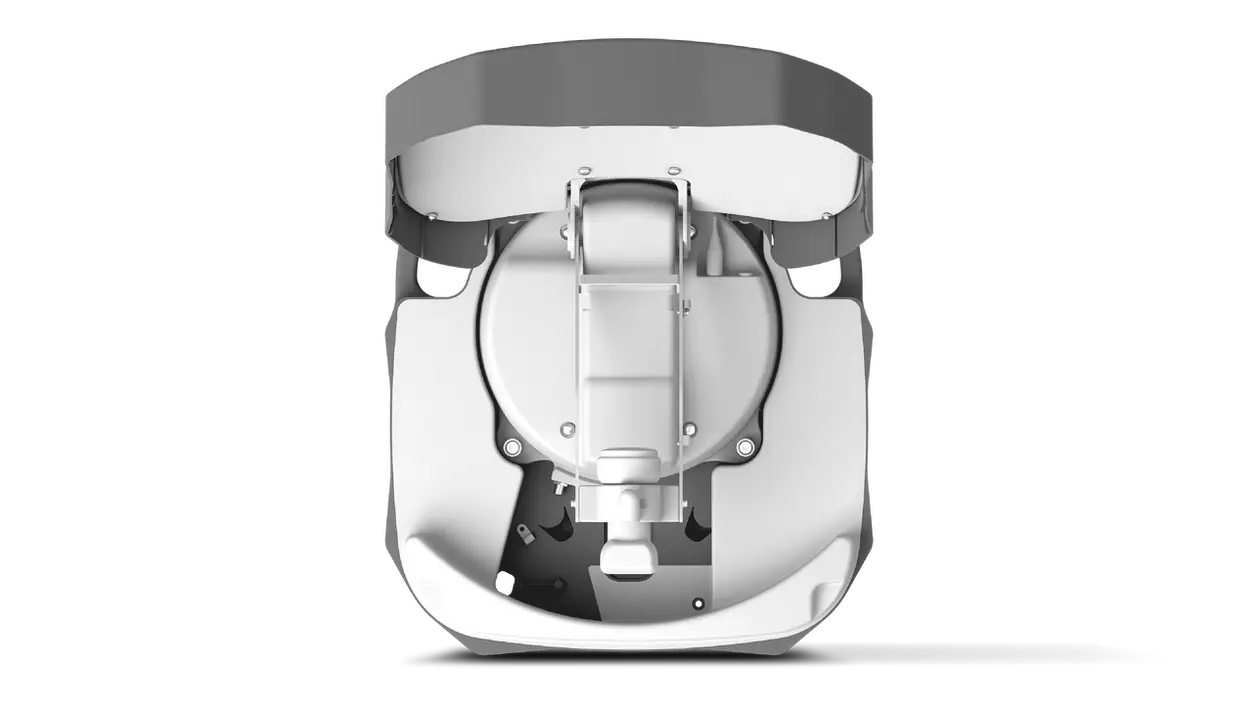

The SELFSAT CARAVAN MOBIL is a freely positionable, portable, fully automatic, mobile camping SAT antenna that is permanently installed in a transport case. With the included coaxial cable, it can be positioned at a distance of up to 12 m from the television or receiver and with a clear view of the satellite. The motorhome or caravan can therefore be parked in the shade. When you start the satellite search, the case opens and the upper part with the integrated parabolic mirror begins to align with the satellite.

The antenna has two carrying handles (can also be used to protect against theft) and can be transported lying horizontally or standing vertically. On the bottom it has a storage compartment for storing the connection cables and rubber feet. The antenna can be operated via app via Bluetooth; 10 satellites can be selected. The skew can be adjusted manually. Due to its compact design, it can also be used very well in panel vans or campervans.

Modern control via Bluetooth only requires an antenna cable from the suitcase to your motorhome or caravan. You can easily control your antenna using a smartphone app.

​

Fully automatic alignment

After switching on, the antenna automatically aligns itself with the Astra 19E satellite. You can also control the antenna to any other position within the pre-programmed satellites.

​

Mobile app:

Support of all operating functions

Firmware update

Troubleshooting with self-diagnosis

Status display of the antenna function

iOS or Android

​

Single cable connection:

Easy installation with just one coaxial cable without an additional controller

​

Model:

CARAVAN MOBILE

​

Connections:

1 (single)

​

Antenna gain:

33.4dBi @ 12.7GHz

​

Dimensions (WxDxH):

456x463x202mm

​

Weight:

7.0kg

​

Power consumption:

11W (While searching)

​

Scope of delivery:

Fully automatic satellite antenna caravan mobile

Cigarette lighter cable

Antenna cable (gray) 12 m

STB cable 1.5 m

IP box

operation manual
